Electrical plan
symbols chart.
A working legend for estimators. Every common symbol — receptacles, switches, lighting, power and systems — drawn cleanly, with what it means and, more to the point, what it means for your count.

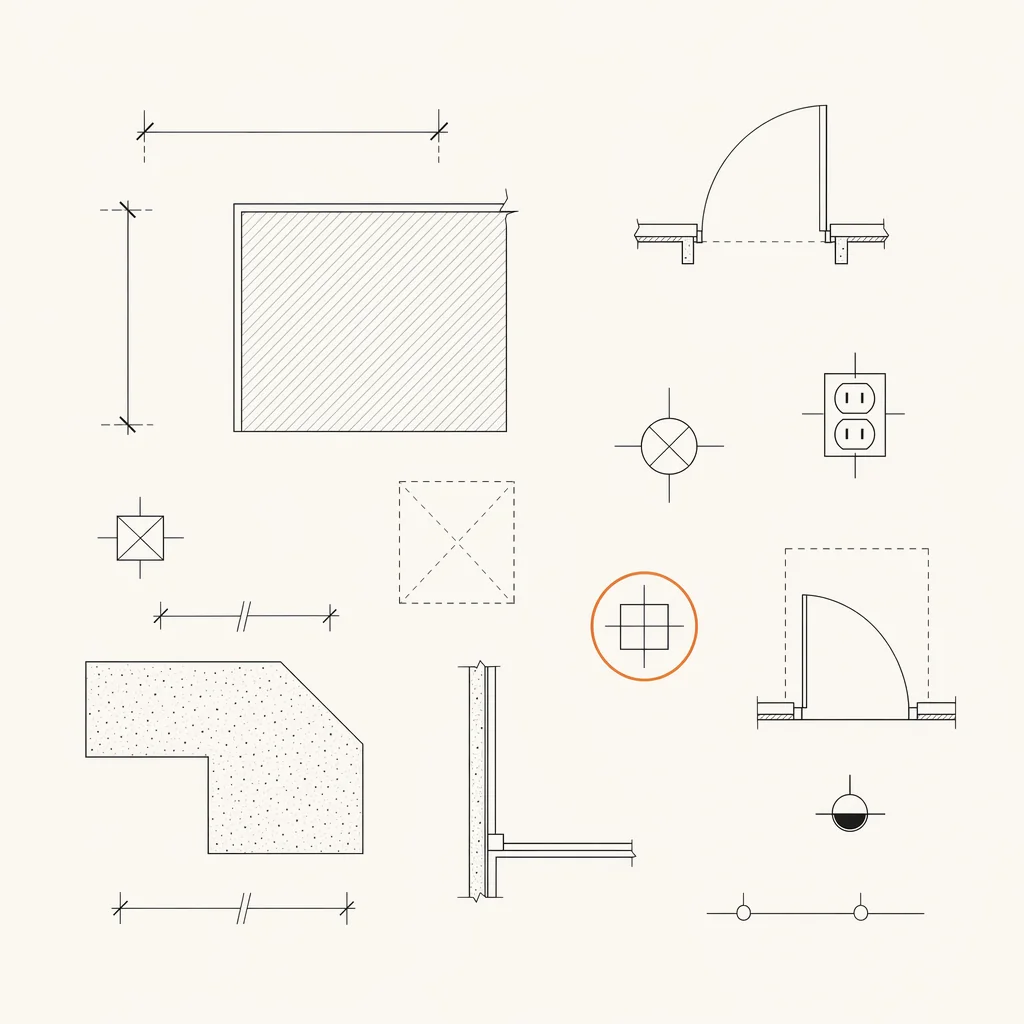

How to use this chart
If you take off electrical plans, the symbols are your raw material. Every receptacle you price, every fixture you order, every foot of branch wire starts as a small mark on a drawing. Read the marks wrong and the whole estimate drifts — usually low, because the easy-to-miss devices are the special-purpose ones with the highest unit cost.
The chart below is organized the way you actually take off a job: power devices first (receptacles), then controls (switches), then the lighting, then the distribution equipment, then the low-voltage and life-safety systems. Each symbol is drawn the way it most commonly appears on a U.S. commercial or residential set, with a plain-language meaning and a short note on what it does to your numbers. Use it to get oriented — then read on for the one rule that beats every chart, including this one.
The legend on the set you are bidding always wins. A general chart gets you 90% of the way; the project legend settles the other 10% — and the 10% is where the money hides.— The first rule of electrical takeoff
Receptacles & outlets
Receptacles are the bread and butter of a power plan. The base symbol is a circle with two lines for the contacts; everything else is a variation on that, distinguished by tick marks, letters, fill or position. Watch for the special-purpose ones — they cost far more per unit than a standard duplex.
Duplex receptacle
A standard two-outlet wall plug. The circle is the device, the line through it the two contacts.
TakeoffThe default count item on any power plan. One symbol = one device + one box + plate.
GFCI receptacle
A ground-fault-protected outlet, noted GFCI or GFI. Required near water — kitchens, baths, exterior.
TakeoffPrice as a GFCI device, not standard. Higher unit cost; often miscounted as plain duplex.
Quad receptacle
Two duplex devices ganged in one box — four outlets. Shown as a crossed circle.
TakeoffCounts as two devices in one two-gang box. Common at workstations and offices.
Floor receptacle
An outlet set into the floor, drawn as the device inside a square (the floor box).
TakeoffCarries a floor box, fire-rated poke-through or core drill — expensive labor, easy to under-price.
220V / range outlet
A 208/240V receptacle for a range, dryer or large appliance, noted with its voltage.
TakeoffDedicated circuit, heavier wire and a two-pole breaker. One symbol drives a lot of material.
Special-purpose outlet
A receptacle for a specific piece of equipment — often part-filled or letter-tagged to a keynote.
TakeoffAlways chase the keynote. Voltage, amps and connection type vary; never assume standard.
Switches & controls
Switches are marked with an S and a number or letter that tells you the type. The number is the count item; the letter ties the switch to the fixtures it drives. Three- and four-ways travel-wire between locations, so one extra symbol can mean a meaningful jump in wire footage.
Single-pole switch · S
One switch controlling a load from one location. The plain workhorse control.
TakeoffOne device, one box. The baseline against which other switch types are priced.
Three-way switch · S3
One of a pair controlling a load from two locations — top and bottom of a stair, two doors.
TakeoffThey come in pairs and need 3-conductor travelers — more wire than the device count suggests.
Four-way switch · S4
A middle switch in a three-or-more-location control scheme, used with two three-ways.
TakeoffAdds a 4-way device plus extra travelers. Rare but pricey to miss in a long corridor.
Dimmer · SD
A switch that varies output. Must be matched to the lamp type (LED, 0–10V, etc.).
TakeoffHigher device cost than a toggle and must suit the driver — check the fixture schedule.
Occupancy sensor · OS
An auto-on/off control that senses presence. Driven by energy code in many rooms.
TakeoffWall- or ceiling-type changes the price and may add a power pack — read the legend note.
Switch leg · Sa
A lowercase letter links a switch to the fixtures tagged with the same letter on the plan.
TakeoffNot a new device type — a control map. Use it to group homeruns and switch legs correctly.
Lighting fixtures
Lighting symbols mark where a fixture lands; the letter or number beside each one (the type tag) points to the fixture schedule for the actual product. Count the symbols on the reflected ceiling plan, then translate each tag through the schedule.
Surface fixture
A ceiling- or wall-mounted luminaire, often a circle with a cross. The general light symbol.
TakeoffRead the type tag, then the schedule, for wattage, lamp and mount. One symbol, one fixture.
Recessed downlight
A can/pot light let into the ceiling, drawn as concentric circles.
TakeoffCounts per can. Watch ceiling type — IC vs non-IC and trim drive the price.
Wall sconce
A wall-mounted fixture, shown as a circle hugging a wall line.
TakeoffMounting height and box matter; coordinate with architectural elevations before counting.
Track lighting
A run of track with movable heads, drawn as a line with dots for the heads.
TakeoffPrice the track by length and the heads by count — two line items from one symbol.
Exit sign
An illuminated egress sign, often a small box marked EXIT with directional arrows.
TakeoffLife-safety item on the emergency circuit; combo exit/emergency units are common — check the tag.
Emergency light
A battery-backed bug-eye fixture that lights egress paths on power loss.
TakeoffOn the emergency/life-safety circuit; remote heads add count beyond the unit itself.
Power & distribution
Distribution equipment is where the real dollars sit. These symbols mark the gear that feeds everything else — panels, transformers, motors, disconnects — and each one usually carries a tag pointing to a schedule or the one-line diagram.
Panelboard
A distribution panel, drawn as a filled rectangle, tagged to the panel schedule (e.g. LP-1).
TakeoffEach panel is a major assembly. The schedule tells you breaker count and feeder size.
Transformer
A dry-type or distribution transformer, often two overlapping circles or a tagged box.
TakeoffCarries primary and secondary feeders plus a housekeeping pad — confirm kVA on the one-line.
Motor
A motor connection, drawn as a circle marked M with its horsepower noted nearby.
TakeoffEach motor needs a circuit, disconnect and often a starter — coordinate with mechanical.
Disconnect switch
A safety/fused disconnect serving equipment, shown as a switch inside a box.
TakeoffFused or non-fused and NEMA rating change the price — read the tag and equipment schedule.
Junction box
A pull/splice point with no device, marked J. Used to route or join conductors.
TakeoffBoxes-and-covers material plus labor; clusters of J-boxes signal complex routing.
Homerun
An arrow from a device back to its panel. Tick marks count conductors; the note names the circuit.
TakeoffThe driver of branch wire and conduit footage. Count ticks for conductor quantity per run.
Systems & low-voltage
Life-safety, data and comfort systems often share the plan or get their own sheet. These symbols are small but rarely cheap — fire-alarm devices in particular carry their own scope, sometimes as an allowance or a separate sub.
Smoke detector
A smoke-sensing device, drawn as a circle marked SD (or S in a fire-alarm legend).
TakeoffPart of the fire-alarm scope — confirm whether it is in your bid or the FA sub's.
Data outlet
A voice/data jack, commonly a filled triangle. Often tagged with the number of drops.
TakeoffBox and mud-ring on your side; cabling may be a separate low-voltage scope — verify.
TV / coax outlet
A television/coax jack, often an open triangle or a circle marked TV.
TakeoffBox, ring and a pull string typically; confirm who runs the coax.
Thermostat
An HVAC control point, drawn as a circle marked T. Tied to mechanical equipment.
TakeoffUsually a box and conduit stub for the mechanical sub — check the division of work.
Doorbell / chime
A chime or buzzer, often a bell shape; the push button is shown as a small separate device.
TakeoffLow-voltage; pair the chime with its button and transformer when counting.
Fire-alarm pull
A manual pull station, drawn as a box marked F near exits and along egress paths.
TakeoffCounts within the fire-alarm device schedule; coordinate scope so it isn't double-bid.
Why the same symbol means different things
Here is the trap that catches new estimators: there is no single, universally enforced electrical symbol standard. The conventions you see across sets come from a handful of common roots, but every engineering firm — sometimes every individual draftsperson — applies their own house style. One firm fills the GFCI symbol; another just letters it. One uses a triangle for data; another uses a circle with a downward tick. The base shapes rhyme, but the details drift.
That is exactly why every professional set carries its own legend, usually on the first electrical sheet (often E0 or E0.1). The legend is the contract for that project: it defines every mark used on those drawings and overrides any general chart, including this one. Build the habit of reading the legend before you count a single device, and re-reading it on every new set even from the same firm. The two minutes it costs is cheaper than a missed scope.
Reading the lighting fixture schedule against the symbols
The plan tells you where and how many; the lighting fixture schedule tells you what. Each lighting symbol carries a type tag — a letter or letter-number like A, A1, F2 — and that tag is the key into the schedule. The schedule row gives you the description, lamp or LED data, wattage, voltage, mounting, manufacturer and catalog number, and any remarks.
The discipline is simple: count the symbols by type tag on the reflected ceiling plan, total each tag, then walk those totals down the schedule to attach a real product and price to each one. Two fixtures that look identical on the plan can be a $90 troffer and a $900 architectural pendant — the only thing that separates them is the tag and the schedule row it points to. Never price off the symbol shape alone.
Homerun arrows, circuiting & keynotes
Three notations turn a pile of symbols into a wireable system. Homerun arrows show where a circuit returns to its panel; the slash marks across the arrow count the conductors (two hots, a neutral, a ground, and so on), and the adjacent note names the panel and circuit number. Those arrows and ticks are what let you estimate branch wire and conduit footage instead of guessing.
Circuiting — the curved lines linking devices to a homerun — tells you which outlets and fixtures share a circuit, which affects how you run the wire and where boxes get pulled together. Keynotes (numbered or deltas in a triangle) attach written instructions to specific symbols: "provide dedicated 20A circuit," "mount at 44 inches," "coordinate with owner equipment." Skip a keynote and you skip scope. Read every one that touches a device you are counting.
Where Pilars fits
Symbols, legends, fixture schedules, homeruns, keynotes — that is a lot of cross-referencing for every device on every sheet, and it is exactly the kind of careful, repetitive reading where attention slips on hour six of a takeoff. Pilars reads the legend and the schedules for you: it interprets the symbols on the set you uploaded, ties each fixture tag to its schedule row, follows the homeruns and surfaces the keynotes — so you spend your time reviewing the count instead of decoding the drawing. It is automated, cloud-based, covers every trade, and is priced at a flat $100 per trade with no per-seat fees.
You still make the calls. Pilars just does the decoding first, then hands you a count you can check against your own eye.
Questions estimators actually ask
Are electrical plan symbols standardized?
Loosely. Most symbols trace back to common conventions, but every firm tweaks them. The legend printed on the set you are bidding always overrides any general chart — read it first, every time.
What does an S with a number next to a switch mean?
The number tells you the switch type: S is single-pole, S3 is a three-way, S4 is a four-way, and SD is a dimmer. Subscripts and letters can also tie a switch to the fixtures it controls.
How do I tell a GFCI receptacle from a normal one?
A standard duplex receptacle is a circle with two parallel lines. A GFCI is usually the same symbol with the letters GFCI or GFI noted beside it, or a special hatched fill defined in the legend.
What is the arrow coming off a device on the plan?
That is a homerun: it shows the circuit running back to the panel. The tick marks count conductors and the note identifies the panel and circuit number, which drives your wire and conduit counts.
Do I count from the symbol or the fixture schedule?
You count the symbols on the plan, then use the fixture schedule to learn what each type tag actually is — wattage, voltage, mounting and the catalog number you price against.
